LinkLine Developer Guide

---

Acknowledgements

This project is based on the AddressBook-Level 3 project created by the SE-EDU initiative.

---

Setting up, getting started

Refer to the guide Setting up and getting started.

---

Design

Architecture

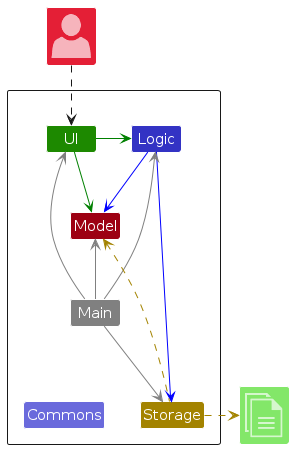

The Architecture Diagram given above explains the high-level design of the App.

Given below is a quick overview of main components and how they interact with each other.

Main components of the architecture

Main (consisting of classes Main and MainApp) is in charge of the app launch and shut down.

• At app launch, it initializes the other components in the correct sequence, and connects them up with each other.
• At shut down, it shuts down the other components and invokes cleanup methods where necessary.

The bulk of the app's work is done by the following four components:

• UI: The UI of the App.
• Logic: The command executor.
• Model: Holds the data of the App in memory.
• Storage: Reads data from, and writes data to, the hard disk.

Commons represents a collection of classes used by multiple other components.

How the architecture components interact with each other

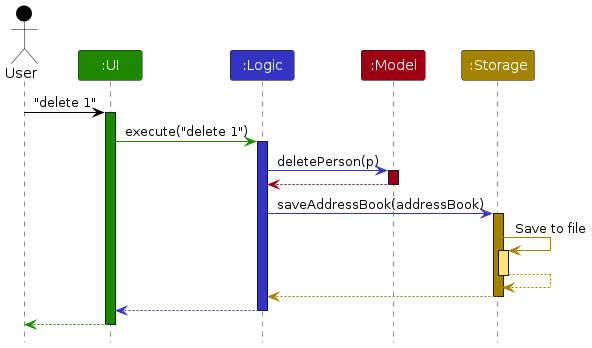

The Sequence Diagram below shows how the components interact with each other for the scenario where the user issues the command delete 1.

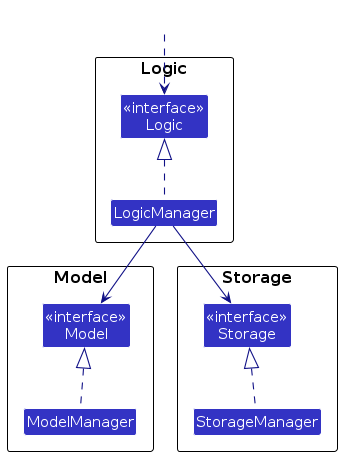

Each of the four main components (also shown in the diagram above),

• defines its API in an interface with the same name as the Component.
• implements its functionality using a concrete {Component Name}Manager class (which follows the corresponding API interface mentioned in the previous point.

For example, the Logic component defines its API in the Logic.java interface and implements its functionality using the LogicManager.java class which follows the Logic interface. Other components interact with a given component through its interface rather than the concrete class (reason: to prevent outside component's being coupled to the implementation of a component), as illustrated in the (partial) class diagram below.

The sections below give more details of each component.

UI component

The API of this component is specified in Ui.java

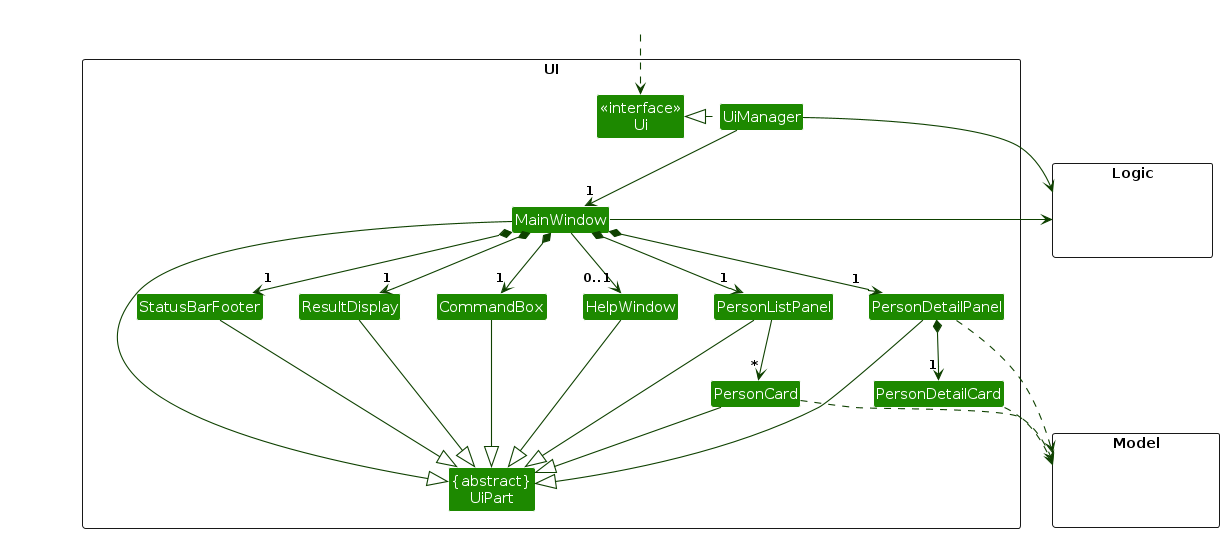

The UI consists of a MainWindow that is made up of parts e.g.CommandBox, ResultDisplay, PersonListPanel, StatusBarFooter etc. All these, including the MainWindow, inherit from the abstract UiPart class which captures the commonalities between classes that represent parts of the visible GUI.

The UI component uses the JavaFx UI framework. The layout of these UI parts are defined in matching .fxml files that are in the src/main/resources/view folder. For example, the layout of the MainWindow is specified in MainWindow.fxml

The UI component,

• executes user commands using the Logic component.
• listens for changes to Model data so that the UI can be updated with the modified data.
• keeps a reference to the Logic component, because the UI relies on the Logic to execute commands.
• depends on some classes in the Model component, as it displays Person object residing in the Model.

Logic component

API : Logic.java

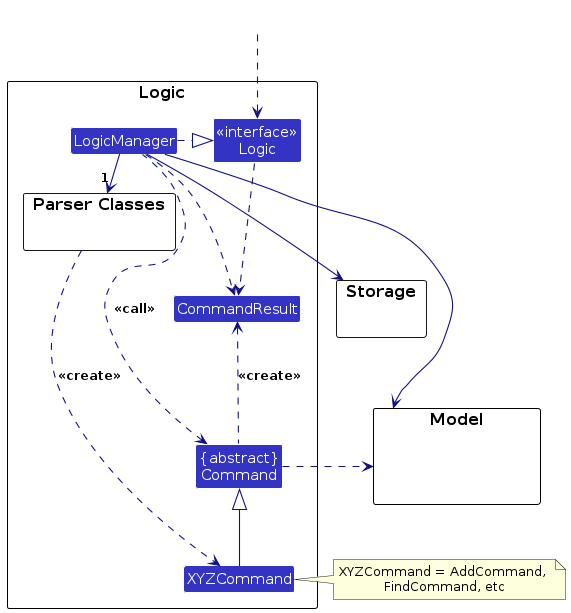

Here's a (partial) class diagram of the Logic component:

The sequence diagram below illustrates the interactions within the Logic component, taking execute("delete 1") API call as an example.

How the Logic component works:

1. When Logic is called upon to execute a command, it is passed to an AddressBookParser object which in turn creates a parser that matches the command (e.g., DeleteCommandParser) and uses it to parse the command.
2. This results in a Command object (more precisely, an object of one of its subclasses e.g., DeleteCommand) which is executed by the LogicManager.
3. The command can communicate with the Model when it is executed (e.g. to delete a client).
   Note that although this is shown as a single step in the diagram above (for simplicity), in the code it can take several interactions (between the command object and the Model) to achieve.
4. The result of the command execution is encapsulated as a CommandResult object which is returned back from Logic.

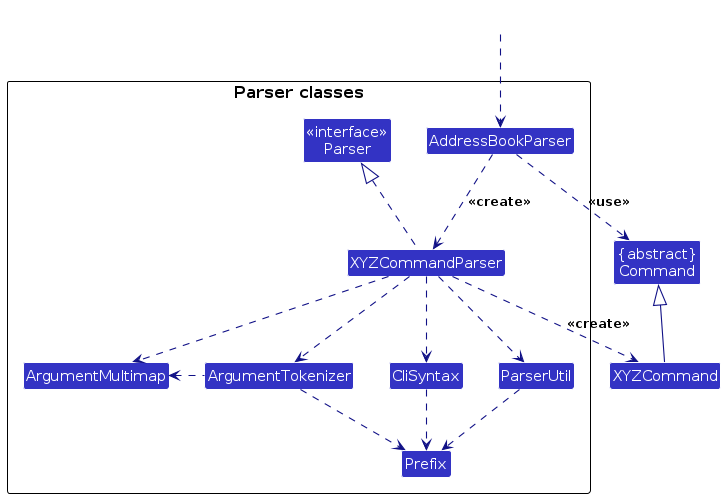

Here are the other classes in Logic (omitted from the class diagram above) that are used for parsing a user command:

How the parsing works:

• When called upon to parse a user command, the AddressBookParser class creates an XYZCommandParser (XYZ is a placeholder for the specific command name e.g., AddCommandParser) which uses the other classes shown above to parse the user command and create a XYZCommand object (e.g., AddCommand) which the AddressBookParser returns back as a Command object.
• All XYZCommandParser classes (e.g., AddCommandParser, DeleteCommandParser, ...) inherit from the Parser interface so that they can be treated similarly where possible e.g, during testing.

Model component

API : Model.java

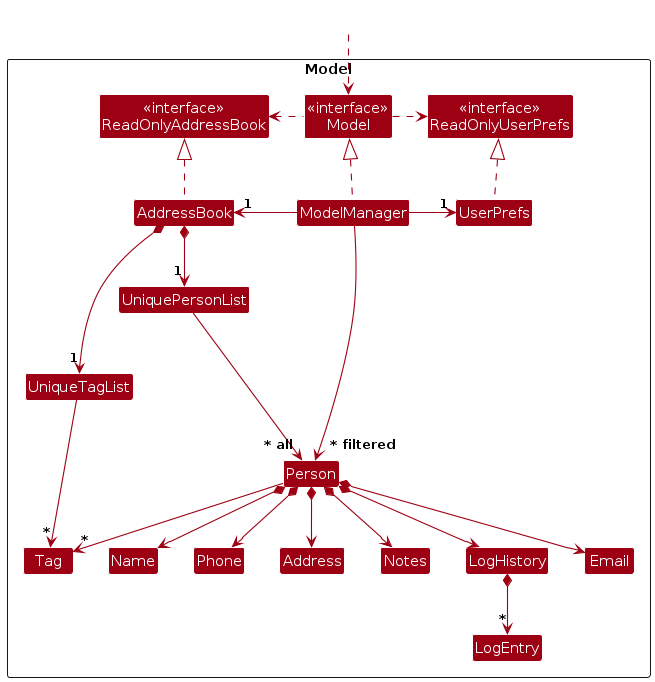

The Model component,

• stores the address book data i.e., all Person and Tag objects (which are contained in UniquePersonList and a UniqueTagList objects respectively).
• stores each Person's LogHistory, which contains zero or more LogEntry records.
• stores the currently 'selected' Person objects (e.g., results of a search query) as a separate filtered list which is exposed to outsiders as an unmodifiable ObservableList<Person> that can be 'observed' e.g. the UI can be bound to this list so that the UI automatically updates when the data in the list change.
• stores a UserPref object that represents the user’s preferences. This is exposed to the outside as a ReadOnlyUserPref objects.
• does not depend on any of the other three components (as the Model represents data entities of the domain, they should make sense on their own without depending on other components)

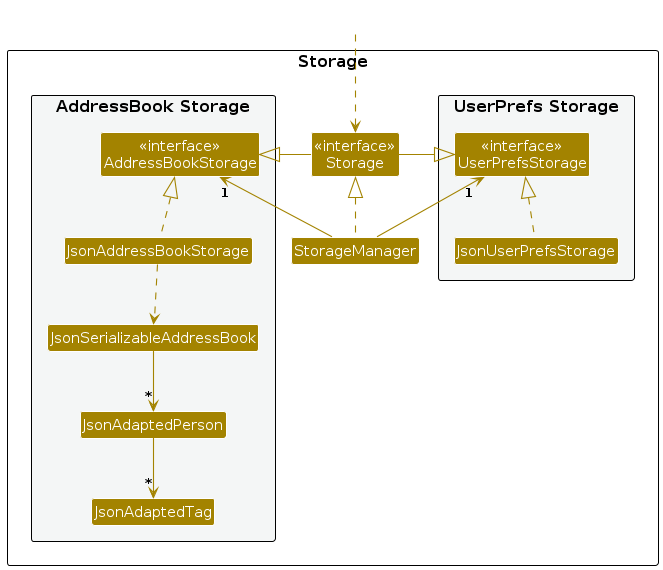

Storage component

API : Storage.java

The Storage component,

• can save both address book data and user preference data in JSON format, and read them back into corresponding objects.
• inherits from both AddressBookStorage and UserPrefStorage, which means it can be treated as either one (if only the functionality of only one is needed).
• depends on some classes in the Model component (because the Storage component's job is to save/retrieve objects that belong to the Model)

Common classes

Classes used by multiple components are in the seedu.address.commons package.

---

Implementation

This section describes some noteworthy details on how certain features are implemented.

Field validation constraints

Implementation

Field-level validation is enforced in the model layer (Name, Phone, Email, Address, Tag, Notes) and reused by parsers via ParserUtil. All user-provided values are trimmed in ParserUtil before validation.

This keeps validation centralized and consistent for both command execution and JSON deserialization.

---

Documentation, logging, testing, configuration, dev-ops

• Documentation guide
• Testing guide
• Logging guide
• Configuration guide
• DevOps guide

---

Appendix: Requirements

Product scope

Target user profile:

• is a solo (one-person) residential on-site service technician (e.g., aircon cleaning / handyman / appliance servicing)
• manages repeat customers and needs fast recall of client contact + exact service-location details
• often works from a laptop/desktop between jobs and prefers a fast, typing-first workflow
• can type quickly and prefers keyboard shortcuts / CLI-style commands over mouse-heavy interactions
• needs to store service-location context to avoid mistakes on-site

Value proposition: A fast, typing-first address book that helps solo residential service technicians avoid mistakes and wasted time by keeping client contact details tightly coupled with service-location context, searchable in seconds.

User stories

Priorities: High (must have) - * * *, Medium (nice to have) - * *, Low (unlikely to have) - *

{More to be added}

Use cases

(For all use cases below, Linkline is the system, and the user is the sole Actor, unless specified otherwise)

Use Case: UC01 - Add new client

System: Linkline Actor: user Guarantees:

• The number of clients is either unchanged (unsuccessful) or incremented (successful).

MSS

1. user requests to add a client.
2. user fills in the details (name, phone, email, address, with optional tag and notes field) of the client on the CLI.
3. Linkline creates a new client, inserts them into the list in lexicographical order by name and displays the details on the GUI.
4. Use case ends.

Extensions

• 2a. Name provided is invalid by criteria given in feature specification.
  • Linkline returns error message informing user what criteria the name must meet.
  • Use case ends.
• 2b. Phone number provided is invalid by criteria given in feature specification.
  • Linkline returns error message informing user what criteria the phone number must meet.
  • Use case ends.
• 2c. Email address provided is invalid by criteria given in feature specification.
  • Linkline returns error message informing user what criteria the email address must meet.
  • Use case ends.
• 2d. Address provided is invalid by criteria given in feature specification.
  • Linkline returns error message informing user what criteria the address must meet.
  • Use case ends.
• 2e. Tag provided is invalid by criteria given in feature specification.
  • Linkline returns error message informing user what criteria the tag must meet.
  • Use case ends.
• 2f. Notes provided is invalid by criteria given in feature specification.
  • Linkline returns error message informing user what criteria the notes must meet.
  • Use case ends.
• 2g. Duplicate client detected (same phone number or email as an existing client).
  • Linkline returns an error message informing the user that a client with the same phone number or email already exists.
  • Use case ends.

Use Case: UC02 - Search for a client

System: Linkline Actor: user

MSS

1. user specifies one or multiple fields (name, phone number, email address, physical address, tags) with one or multiple keywords per field as a search query.
2. Linkline uses the query provided to search and list (lexicographically by name) the clients who have at least one field match successfully against the specified fields (This search is done only against the currently filtered clients).
3. Use case ends.

Extensions

• 1a. The search command does not specify any field.
  • Linkline gives a warning to user that command entered is in an invalid format.
  • Use case ends.
• 1b. The search command has at least one specified field with no keywords (is empty).
  • Linkline gives a warning to user that command entered is in an invalid format.
  • Use case ends.

Use Case: UC03 - Copy client address to clipboard.

System: Linkline Actor: user

MSS

1. user requests to copy a client's address by specifying the client's index.
2. Linkline copies the client's address to the system clipboard.
3. user pastes the address into their desired application (e.g., maps).
4. Use case ends.

Extensions

• 1a. The index given is invalid (not a positive integer or out of range).
  • Linkline returns an error message informing the user that the index is invalid.
  • Use case ends.
• 2a. Linkline fails to access the system clipboard.
  • Linkline returns an error message informing the user to copy the address manually from the details view.
  • user searches for the client (UC02) and copies the address manually from the displayed details.
  • Use case ends.

Use Case: UC04 - Change client phone number

System: Linkline Actor: user

MSS

1. user edits a client's detail via Linkline command by specifying their index and new phone number, and re-sorts the list to maintain lexicographical order.
2. Linkline displays new fields of the updated client.
3. Use case ends.

Extensions

• 1a. The index given is invalid, and does not point to a client.
  • Linkline returns an error that informs user the index given is invalid.
  • Use case ends.
• 2a. Provided phone number is same as phone number of another client.
  • Linkline returns error message informing user that the phone number is already in use.
  • Use case ends.

Use Case: UC05 - Delete a client

System: Linkline Actor: user

MSS

1. user enters delete command with the index of the target client.
2. Linkline displays the client's details and ask for confirmation.
3. user enters the same delete command again.
4. Linkline deletes the client and confirms the deletion.
5. Use case ends.

Extensions

• 1a. The index given is invalid (not a positive integer or out of range).
  • Linkline returns an error message showing that the input index is invalid to the user.
  • Use case ends.
• 2a. user enters any other command instead of confirming.
  • Linkline cancels the pending deletion and executes the new command normally.
  • Use case ends.

Use Case: UC06 - List Clients

System: Linkline Actor: user

MSS

1. user requests to view all client added in Linkline via command.
2. Linkeline shows list with all clients sorted lexicographically by name.
3. Use case ends.

Extensions

• 1a. There are no client added yet.
  • Linkline returns an error message to remind user to add at least one client before listing them.
  • Use case ends.

Use Case: UC07 - View client detail

System: Linkline Actor: user

MSS

1. user confirms personal detail of a specific client via Linkline by specifying the index of target client.
2. Linkline shows full details of the client including name, phone, email, full address and precautions.
3. Use case ends.

Extensions

• 1a. The index given is invalid (not a positive integer or out of range).
  • Linkline returns an error message showing that the input index is invalid to the user.
  • Use case ends.

Use Case: UC08 - Edit existing client details

System: Linkline Actor: user

MSS

1. user edit client detail by adding new tag(s) or/and notes via Linkline by specifying client index, tag content or/and notes content.
2. Linkline displays new fields of the updated client.
3. Use case ends.

Extensions

• 1a. The index given is invalid (not a positive integer or out of range).
  • Linkline returns an error message showing that the input index is invalid to the user.
  • Use case ends.
• 1b. No field is provided.
  • Linkline returns an error message to inform user adding at least one field.
  • Use case ends.
• 1c. A tag provided is invalid according to the feature specification.
  • Linkline returns an error message informing user of the tag naming rules.
  • Use case ends.

Use Case: UC09 - Filter clients by tags

System: Linkline Actor: user

MSS

1. user enters one or multiple keywords as a filter query.
2. Linkline uses the query provided to filter and list (lexicographically) the clients who have the specified tags that match the query.
3. Use case ends.

Extensions

• 1a. The filter query does not match against any of the clients' tags.
  • Linkline returns an empty page that informs user no matching clients were found.
  • Use case ends.
• 1b. No filter query was provided.
  • Linkline returns error message informing user that at least one word must be provided as a filter query.
  • Use case ends.
• 1c. Filter query provided is invalid by criteria given in feature specification.
  • Linkline returns error message informing user what criteria the query must meet.
  • Use case ends.

Use Case: UC10 - Rename a tag

System: Linkline Actor: user

MSS

1. user requests to rename an existing tag to a new name.
2. Linkline renames the tag in the global tag list.
3. Linkline updates all clients currently having the old tag to reflect the new tag name.
4. Use case ends.

Extensions

• 1a. The target tag name does not exist in Linkline.
  • Linkline returns an error message informing the user that the tag was not found.
  • Use case ends.
• 1b. The new tag name already exists in Linkline.
  • Linkline returns an error message informing the user that the new tag name is a duplicate.
  • Use case ends.

Use Case: UC11 - Delete a tag

System: Linkline Actor: user

MSS

1. user requests to delete a specific tag by tag name.
2. Linkline displays the specified tag name and ask for confirmation.
3. user enters the same delete tag command again.
4. Linkline removes the tag from the global tag list.
5. Linkline removes the tag from all clients with that tag name.
6. Use case ends.

Extensions

• 1a. The tag name provided does not exist.
  • Linkline returns an error message informing the user that the tag was not found.
  • Use case ends.
• 2a. user enters any other command instead of confirming.
  • Linkline cancels the pending deletion and executes the new command normally.
  • Use case ends.

Non-Functional Requirements

1. Portability: Should work on any mainstream OS as long as it has Java 17 or above installed.
2. Capacity & Performance: Should be able to hold up to 1000 clients without a noticeable sluggishness in performance for typical usage.
3. Usability (Efficiency): A user with above average typing speed for regular English text (i.e. not code, not system admin commands) should be able to accomplish most of the tasks faster using commands than using the mouse.
4. Data Integrity (Duplicate Prevention): The system must prevent duplicate client entries by enforcing uniqueness on normalized phone number and normalized email address. An attempt to add or edit a client resulting in a duplicate must be rejected with a clear error message.
5. Data Persistence (Safety): All data-modifying commands (add, delete, edit) must trigger an automatic save to the local JSON file. The save mechanism must use a safe write strategy (e.g., write to temp file then rename) to prevent data corruption in case of a system crash during write.
6. Fault Tolerance (Load Failure): If the data file is missing, corrupted, or in an invalid format on startup, the application must not crash.
7. Performance (Command Response): Every user command that does not modify data (e.g., find, list, view) should display the result within 500 milliseconds for a database of up to 1000 clients.
8. Performance (Startup Latency): The application should be ready for user input within 3 seconds on a standard hardware configuration (e.g., a laptop from the last 5 years) with a dataset of up to 500 clients.
9. Usability (Learnability): A first-time user who has never used a command-line interface before should be able to understand the basic workflow (add, list, find) within 10 minutes, aided by sample data and a comprehensive help command.
10. Consistency (User Experience): The application must strictly adhere to the command format, parameter rules, and error messages defined in the functional specification to ensure a predictable and reliable user experience.
11. Constraint (Scope): The system is designed exclusively for a solo technician. Features requiring multi-user access, cloud synchronization, or network communication are explicitly out of scope for the MVP.
12. Constraint (Storage Format): Data persistence is limited to a human-editable JSON file. No external database systems (e.g., MySQL, PostgreSQL) shall be used.
13. Accessibility (Error Clarity): All error messages must be user-friendly and actionable, specifying exactly what went wrong and how to correct it, rather than displaying technical stack traces or cryptic codes.

Glossary

• Client / Person: The primary entity in Linkline. Mandatory fields include Name, Phone, Email, and Address. Optional fields include Tags and Notes.
• CLI (Command Line Interface): A text-based interface where the user interacts with the application by typing commands rather than using a mouse.
• Compact View: A display mode in the GUI where client records are shown with limited information (name and phone only), allowing the user to scan many records at once without excessive scrolling.
• Duplicate Client: Two clients are considered duplicates if they share the same normalized phone number or normalized email address.
• Full View: A details panel (or an expanded display mode) where all information for a specific client (name, phone, email, full address, tags and notes) is visible to the user.
• JSON (JavaScript Object Notation): The lightweight, text-based data format used by the Storage component to persist data to the hard disk.
• Mainstream OS: Widely used operating systems like Windows, Linux, Unix, MacOS
• Service-Location Context: Precise physical details about a client's address (e.g., precise address, access instructions, precautions, or special requirements) critical for an on-site technician.
• Solo Technician: The target user of the app.

---

Appendix: Instructions for manual testing

Given below are instructions to test the app manually.

Launch and shutdown

1. Initial launch

   1. Download the jar file and copy into an empty folder

   2. Double-click the jar file Expected: Shows the GUI with a set of sample contacts. The window size may not be optimum.

2. Saving window preferences

   1. Resize the window to an optimum size. Move the window to a different location. Close the window.

   2. Re-launch the app by double-clicking the jar file.
      Expected: The most recent window size and location is retained.

Deleting a client

1. Deleting a client while all clients are being shown

   1. Prerequisites: List all clients using the list command. Multiple clients in the list.

   2. Test case: delete 1
      Expected: Expected: No client is deleted. Confirmation message with the client's details is shown. Status bar remains the same. Pending deletion state is set for index 1.

   3. Test case: delete 1 (immediately after the above)
      Expected: First contact is deleted from the list. Details of the deleted contact shown in the status message. Timestamp in the status bar is updated.

   4. Test case: delete 1 then list then delete 1
      Expected: First delete 1 shows confirmation. list cancels the pending deletion. Second delete 1 shows confirmation again (not auto-deleted).

   5. Test case: delete 0
      Expected: No client is deleted. Error details shown in the status message. Status bar remains the same.

   6. Other incorrect delete commands to try: delete, delete x, ... (where x is larger than the list size)
      Expected: Similar to previous.
